Screen Printing Project

This project goal was to print 100 postcards using a 4 color process on a Grafica Nano print.

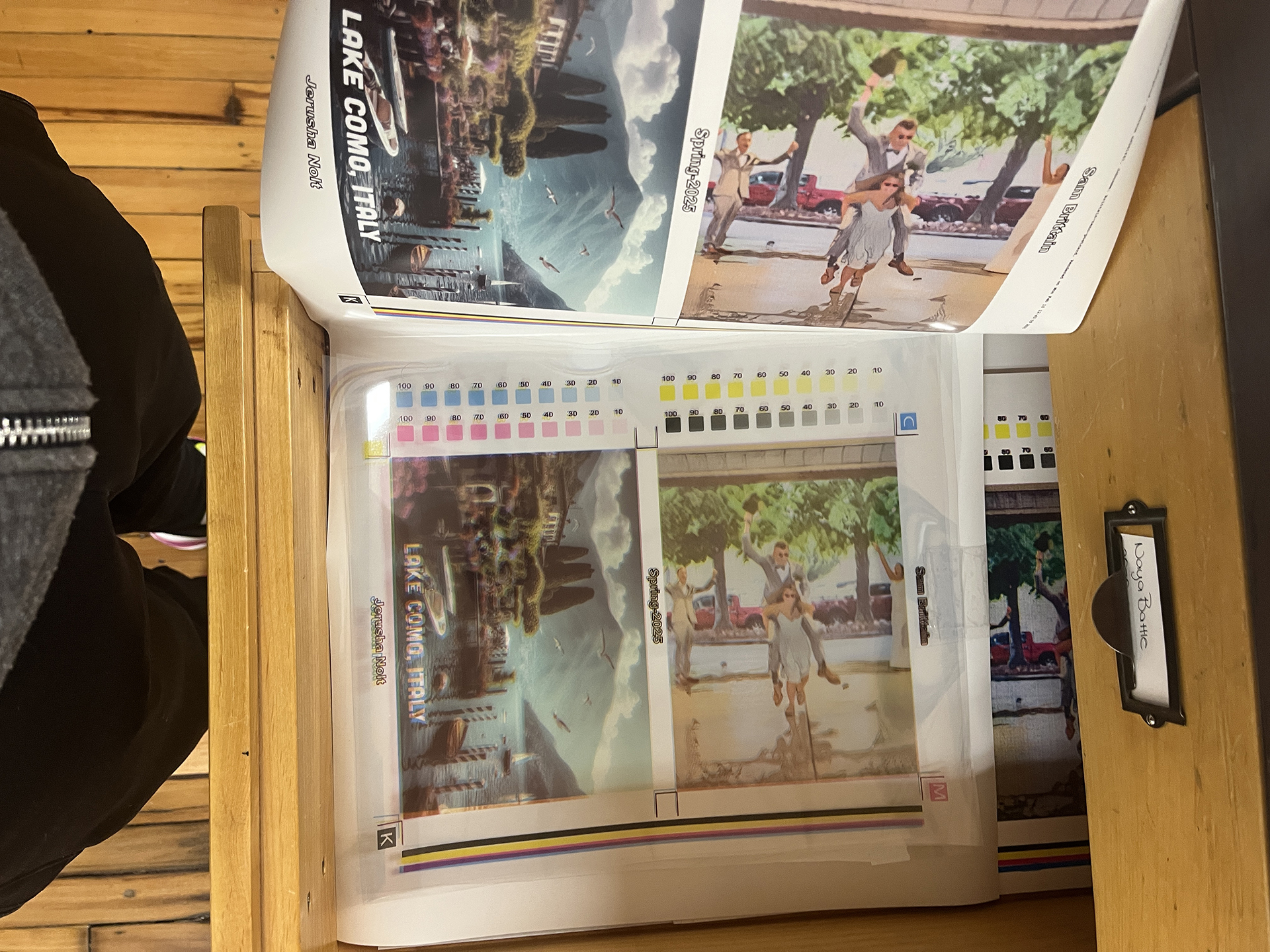

Proof

Part 1: Creating a Proof

The project began by producing a CMYK proof made from four separate film positives; one for each process color. These films were stacked to visually simulate how the final print would reproduce tonal transitions, shadows, and color balance. This step was essential for verifying image separations before burning the screens and running the press.

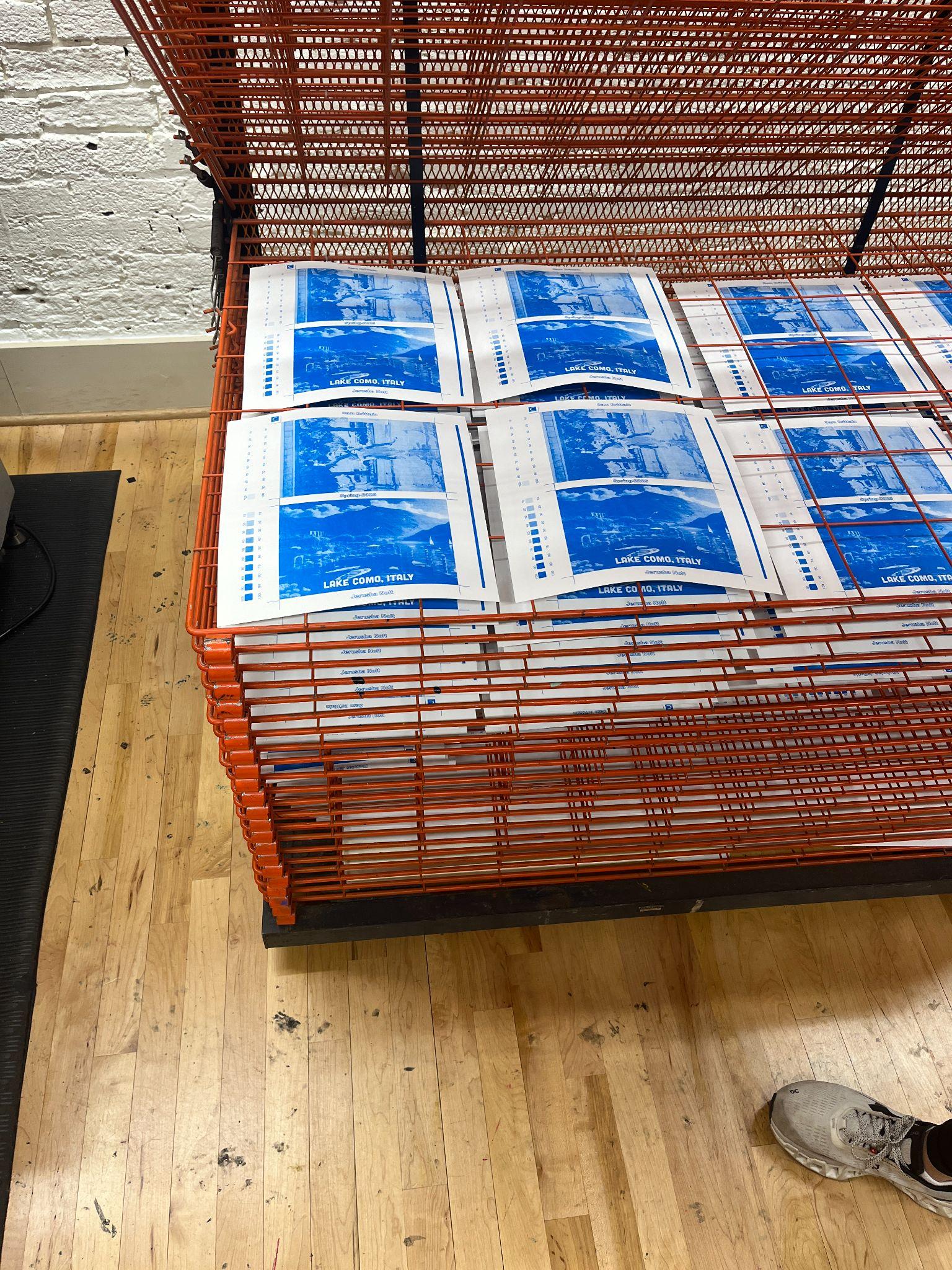

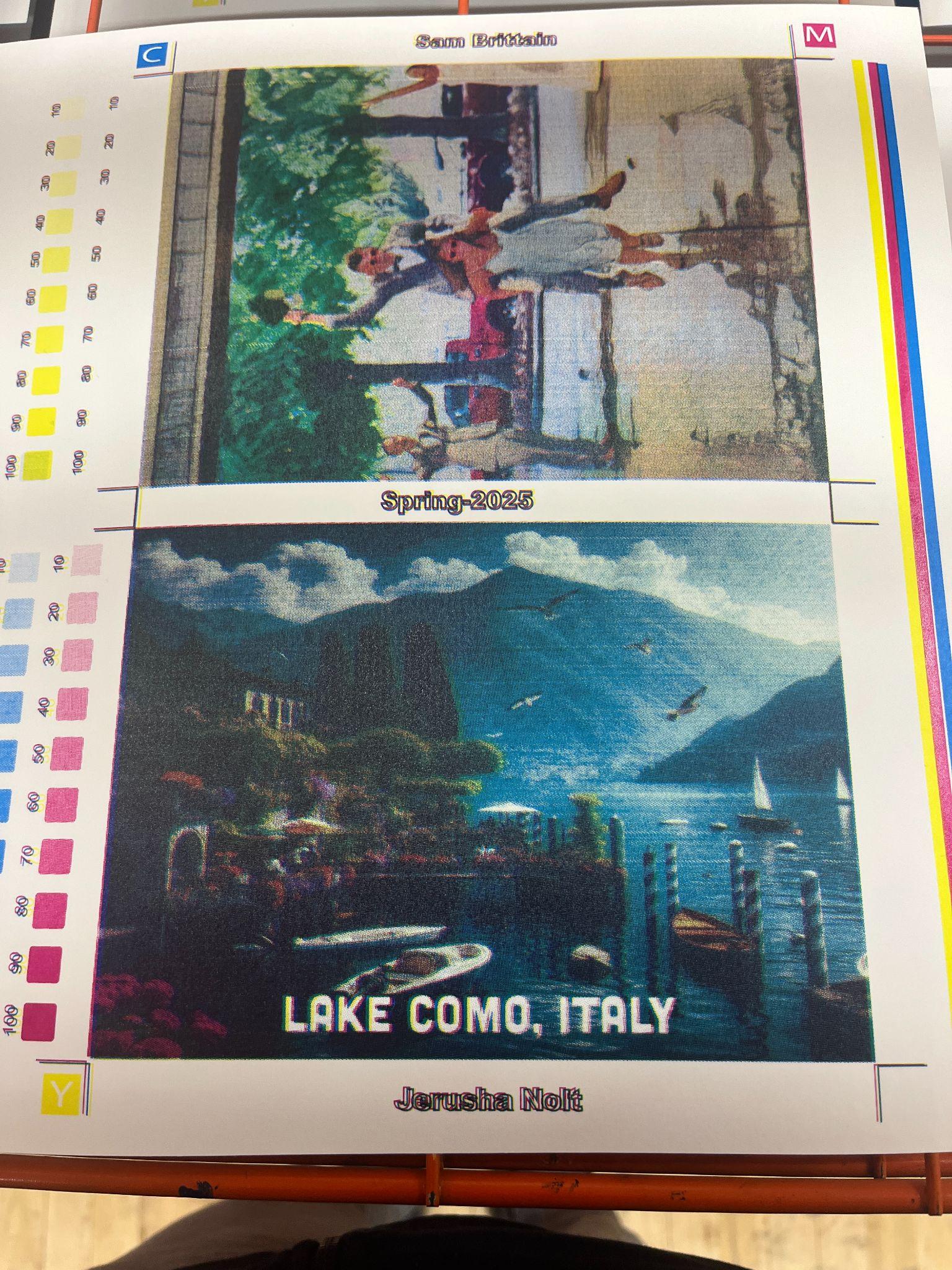

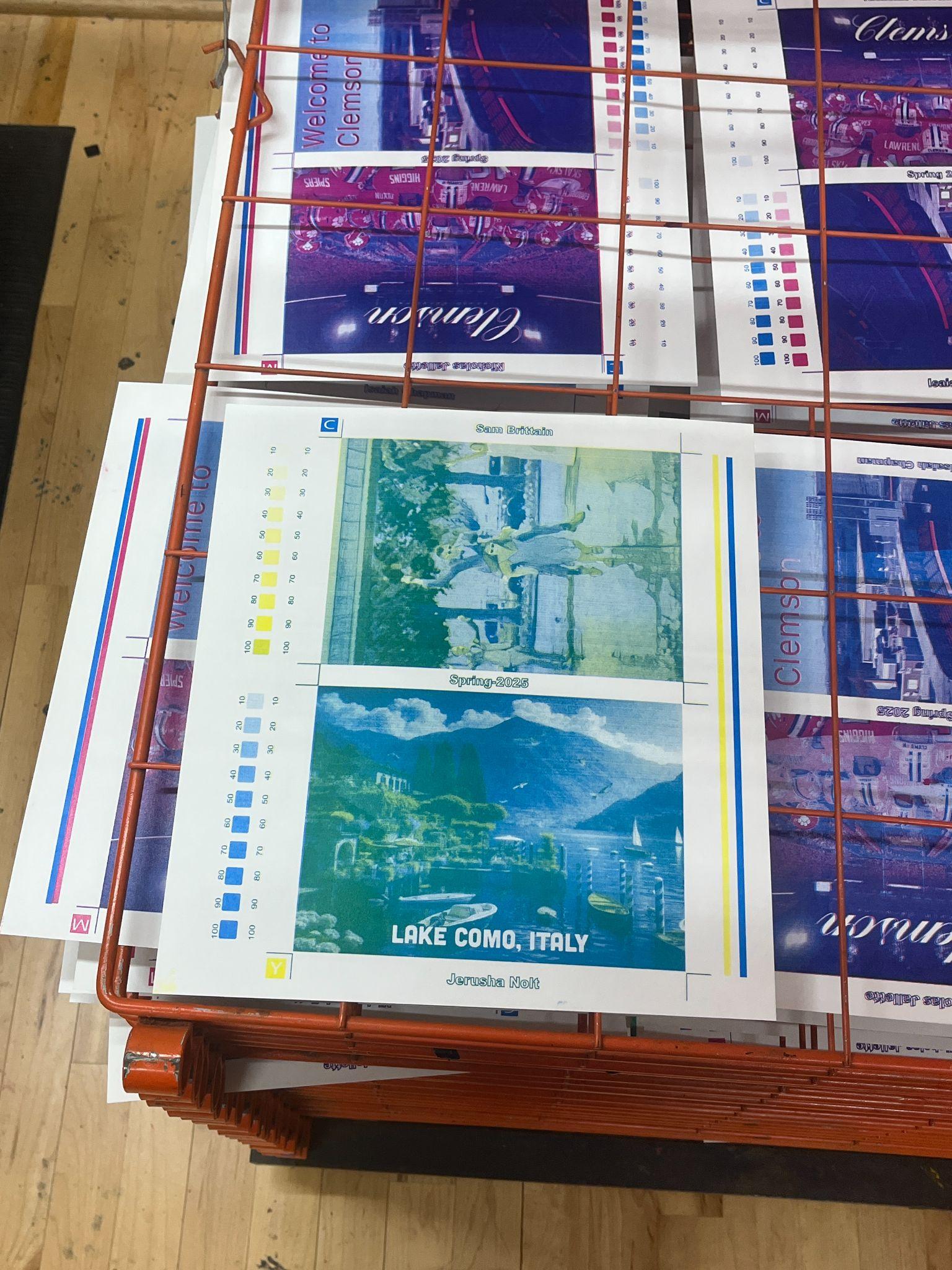

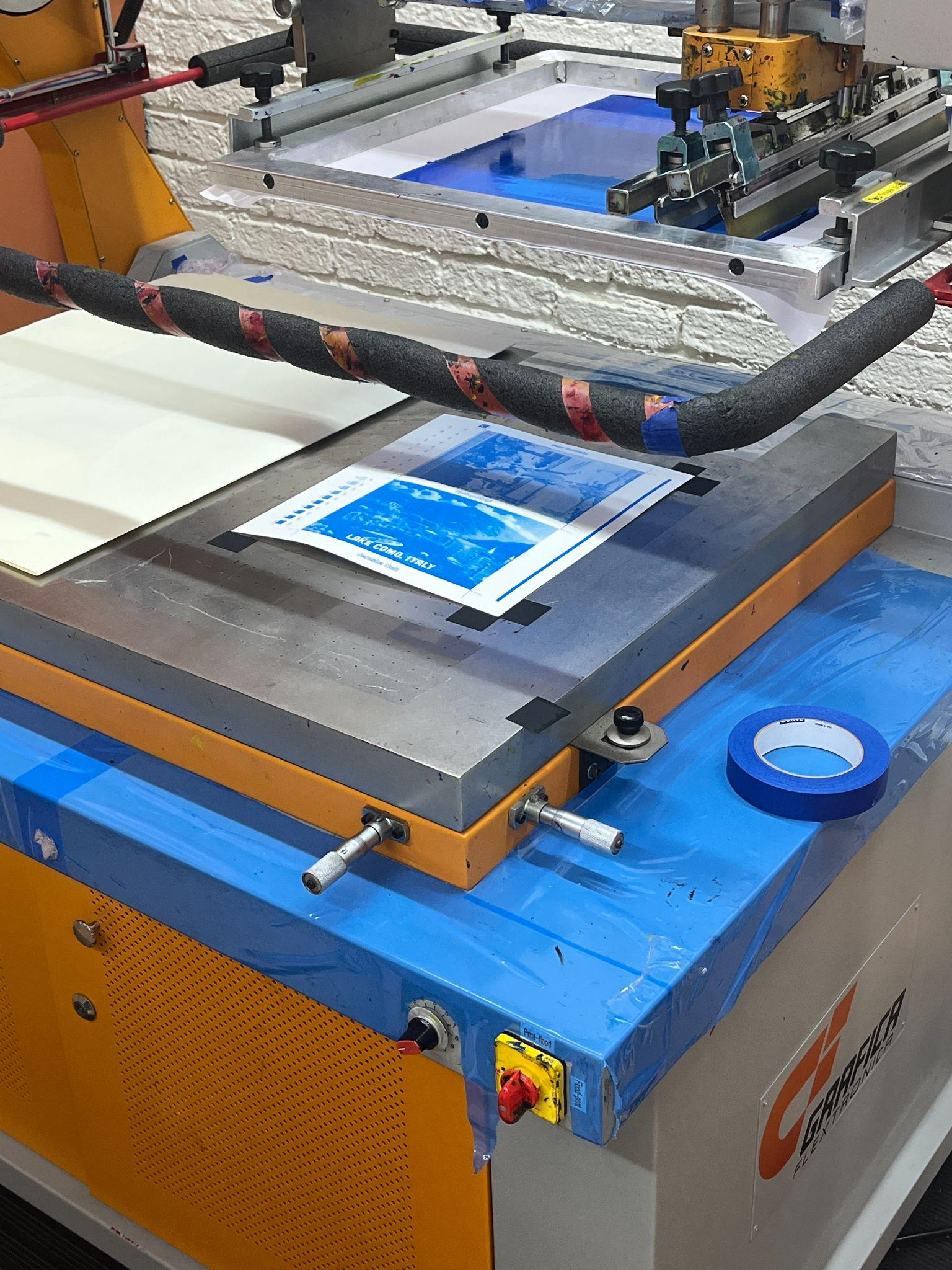

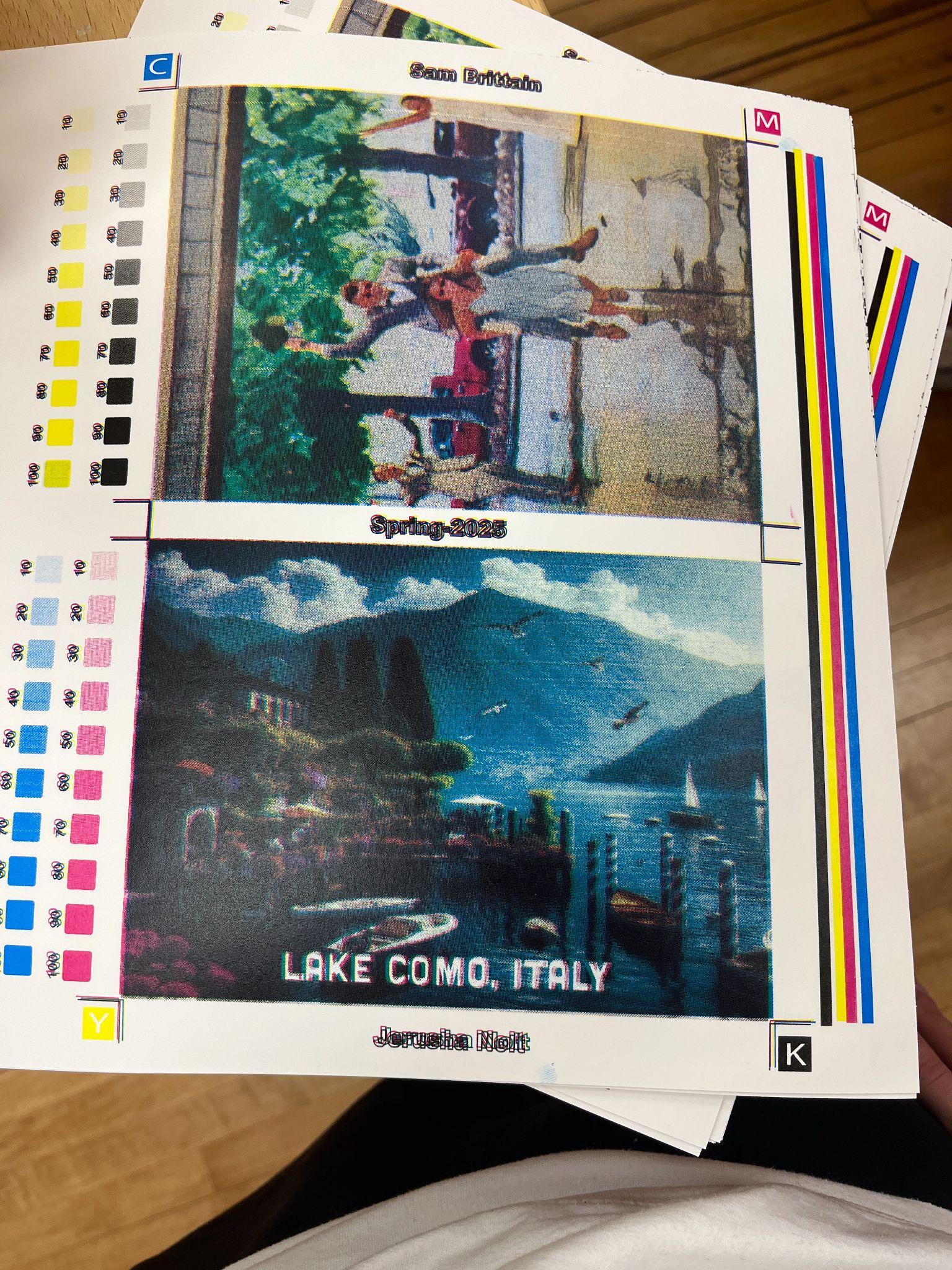

cyan print cyan on the press cyan and yellow print cyan, yellow, and magenta finished product

Part 2: printing the cards

each color was printed one layer at a time on the Grafica Nano press. Starting with cyan, then adding yellow, magenta, and finally black, each pass required precise registration to maintain alignment and avoid color shifts. This stage demonstrated the cumulative nature of process color printing and how each layer contributes to the final image.

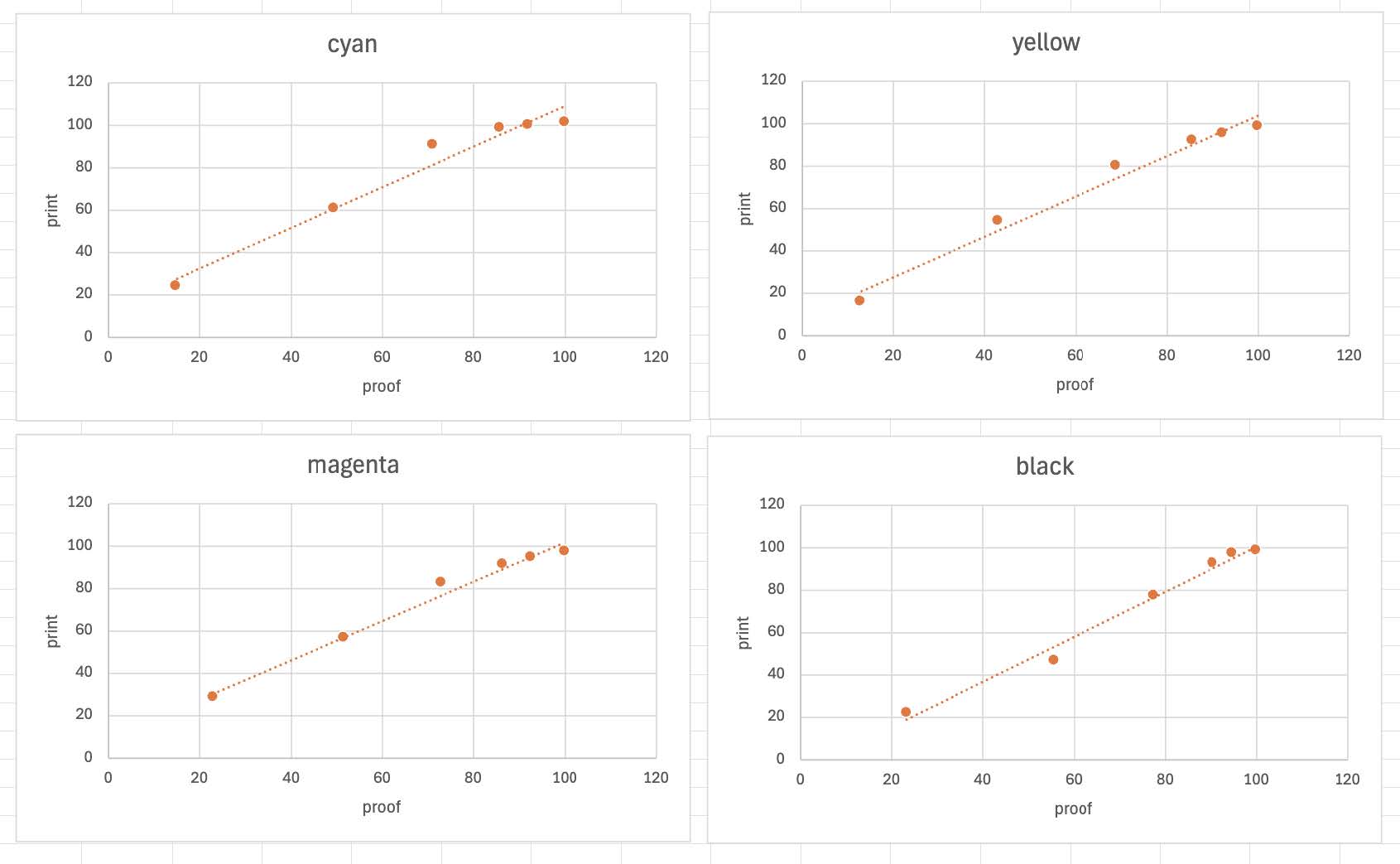

Data analysis

Part 3: Collect Data

The last step was to collect the dot gain data to put into the final report.
